Feeling every bump and jolt on the road? Your car’s suspension system might be crying out for attention. This often-overlooked component plays a crucial role in ensuring a smooth, safe, and comfortable ride. But how much do you really know about what’s happening beneath your vehicle?
From the gentle bounce of luxury sedans to the rugged resilience of off-road trucks, suspension systems come in all shapes and sizes. 🚗🚙🏎️ They’re the unsung heroes that keep your tires glued to the road, absorb shocks, and maintain your vehicle’s stability. Whether you’re a car enthusiast or just someone who wants to understand their vehicle better, diving into the world of suspension systems can be an eye-opening journey.
In this comprehensive guide, we’ll explore everything from the basics of suspension systems to advanced configurations and upgrades. We’ll break down the different types, discuss maintenance tips, and even look at how suspension systems vary across different vehicles. So, buckle up and get ready to suspend your disbelief – you’re about to become a suspension system expert!

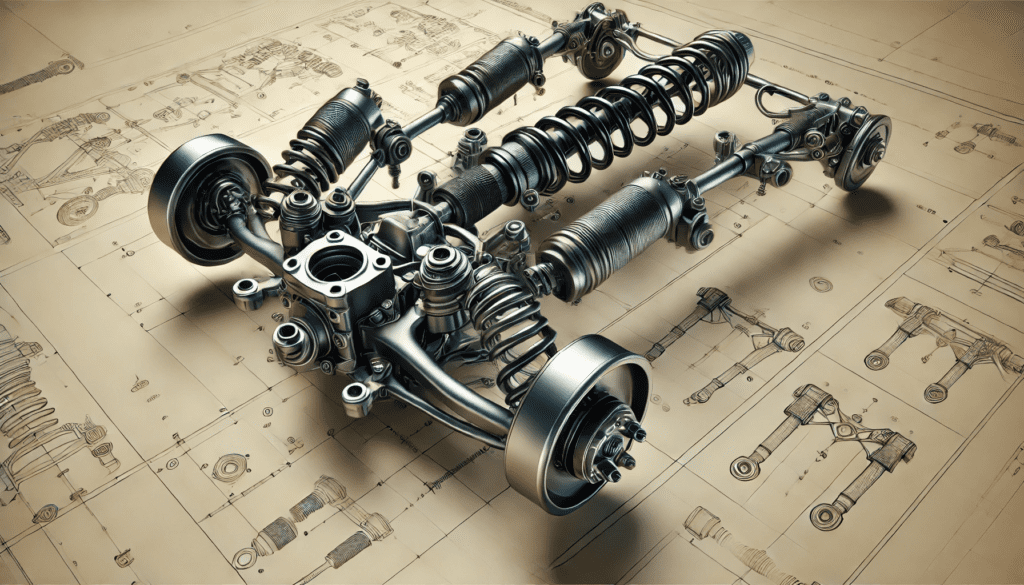

Understanding Suspension Systems
Definition and purpose
A suspension system is a crucial component of any vehicle, designed to provide a smooth and comfortable ride while ensuring optimal handling and safety. The primary purpose of a suspension system is to absorb shocks and vibrations from the road, maintaining constant contact between the tires and the road surface. This not only enhances passenger comfort but also improves vehicle stability, handling, and overall performance.
The suspension system acts as a buffer between the vehicle’s body and the road, effectively isolating the passengers from the irregularities of the terrain. It accomplishes this by:
- Absorbing impact from bumps and potholes
- Minimizing body roll during cornering
- Managing weight transfer during acceleration and braking
- Maintaining proper wheel alignment
- Ensuring consistent tire contact with the road
By fulfilling these functions, the suspension system plays a vital role in:
- Enhancing ride comfort
- Improving handling and stability
- Increasing safety
- Protecting vehicle components from excessive wear and tear
- Optimizing fuel efficiency by maintaining proper wheel alignment
Key components
A typical suspension system consists of several interconnected components, each playing a specific role in the overall functionality. Let’s explore the key components that make up a suspension system:
- Springs: These are the primary shock-absorbing elements in a suspension system. The most common types of springs used in vehicle suspensions are:
- Coil springs
- Leaf springs
- Torsion bars
- Air springs
- Shock absorbers: Also known as dampers, these components work in conjunction with springs to control the oscillation and dampen the bouncing motion caused by road irregularities.
- Struts: These are structural components that combine the functions of a shock absorber and a spring in a single unit. The most common type is the MacPherson strut.
- Control arms: These components connect the wheel hub to the vehicle’s frame or body, allowing for vertical movement while maintaining proper wheel alignment.
- Ball joints: These spherical bearings allow for pivoting movement between the control arms and the wheel hub assembly.
- Bushings: These rubber or polyurethane components reduce friction between moving parts and absorb minor vibrations.
- Sway bars (anti-roll bars): These components help reduce body roll during cornering by connecting the left and right sides of the suspension.
- Suspension links: Various links and rods connect different components of the suspension system, ensuring proper geometry and movement.
Here’s a comparison table of the primary spring types used in suspension systems:
| Spring Type | Advantages | Disadvantages | Common Applications |
|---|---|---|---|
| Coil Springs | Compact, versatile, progressive rate possible | Can be noisy, limited load capacity | Passenger cars, SUVs |
| Leaf Springs | High load capacity, simple design | Less comfortable, more maintenance | Trucks, heavy-duty vehicles |
| Torsion Bars | Space-efficient, adjustable ride height | Limited travel, can be complex | Some cars, military vehicles |
| Air Springs | Adjustable ride height, self-leveling | Expensive, requires air compressor | Luxury vehicles, buses, trucks |
How suspension affects vehicle performance
The suspension system plays a crucial role in determining a vehicle’s overall performance characteristics. Its design and tuning can significantly impact various aspects of driving dynamics:
- Ride comfort: A well-designed suspension system absorbs road imperfections, providing a smooth and comfortable ride for passengers. The balance between comfort and performance is often a key consideration in suspension tuning.
- Handling and stability: The suspension system influences how a vehicle responds to steering inputs and behaves during cornering. A properly tuned suspension helps maintain tire contact with the road, enhancing grip and stability.
- Braking performance: By managing weight transfer during braking, the suspension system helps maintain consistent contact between the tires and the road surface, improving overall braking efficiency and stability.
- Acceleration: During acceleration, the suspension system manages weight transfer to the rear wheels, helping to maximize traction and power delivery.
- Load carrying capacity: The suspension’s design determines how much weight a vehicle can safely carry and how it behaves under different load conditions.
- Off-road capability: For vehicles designed for off-road use, the suspension system’s articulation and travel characteristics are crucial for navigating rough terrain.
- Aerodynamics: Some advanced suspension systems can lower the vehicle’s ride height at high speeds, reducing aerodynamic drag and improving fuel efficiency.
- Tire wear: A properly functioning suspension system ensures even tire wear by maintaining correct wheel alignment and consistent road contact.
The impact of suspension on vehicle performance can be illustrated through the following examples:
- A sports car with a stiff, performance-oriented suspension will have excellent handling and cornering abilities but may sacrifice some ride comfort.
- A luxury sedan with a softer suspension will prioritize passenger comfort over sporty handling characteristics.
- An off-road vehicle with long-travel suspension and robust components will excel in rough terrain but may feel less refined on paved roads.
Suspension tuning involves finding the right balance between various performance aspects, often requiring compromises based on the vehicle’s intended use and target market. Engineers must consider factors such as:
- Spring rates
- Damping characteristics
- Suspension geometry
- Anti-roll bar stiffness
- Bushing compliance
By carefully adjusting these parameters, suspension designers can achieve the desired balance of ride comfort, handling, and overall performance for a specific vehicle application.
Now that we have covered the fundamentals of suspension systems, including their definition, key components, and impact on vehicle performance, we can move on to exploring the various types of suspension systems used in modern vehicles. This knowledge will provide a solid foundation for understanding the more specific suspension configurations and their applications in different vehicle types.
Types of Suspension Systems
A. Dependent suspension
Dependent suspension, also known as solid axle suspension, is one of the oldest and most straightforward types of suspension systems used in vehicles. In this configuration, a rigid axle connects the wheels on either side of the vehicle, ensuring that the movement of one wheel directly affects the other.
Characteristics of dependent suspension:
- Simplicity: The design is straightforward, making it easier to manufacture and maintain.
- Durability: Due to its robust nature, it can withstand heavy loads and rough terrain.
- Cost-effectiveness: The simple design translates to lower production costs.
- Limited wheel independence: The movement of one wheel affects the other, potentially compromising ride comfort.
Dependent suspension is commonly found in:
- Heavy-duty vehicles (trucks, SUVs)
- Off-road vehicles
- Some rear suspensions in economy cars
Types of dependent suspension:
- Leaf spring suspension
- Coil spring suspension
- Panhard rod suspension

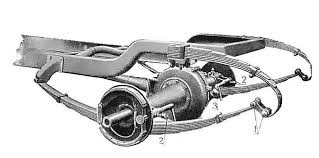

Let’s take a closer look at the leaf spring suspension, which is a popular type of dependent suspension:
| Aspect | Description |
|---|---|
| Design | Multiple curved metal strips stacked together |
| Function | Supports vehicle weight and absorbs road shocks |
| Advantages | Simple, durable, cost-effective |
| Disadvantages | Less comfortable ride, potential for axle wrap |
| Common applications | Trucks, heavy-duty vehicles, some SUVs |
B. Independent suspension
Independent suspension is a more advanced system that allows each wheel to move independently of the others. This design offers superior ride comfort and handling characteristics compared to dependent suspension systems.
Key features of independent suspension:
- Enhanced ride comfort: Each wheel can react to road imperfections without affecting the others.
- Improved handling: Better tire contact with the road surface, especially during cornering.
- Reduced unsprung weight: Lighter components lead to better responsiveness.
- Customizable geometry: Allows for fine-tuning of handling characteristics.
Popular types of independent suspension:
- MacPherson strut
- Double wishbone (or double A-arm)
- Multi-link suspension
- Trailing arm suspension
Let’s examine the MacPherson strut, one of the most widely used independent suspension systems:
| Component | Function |
|---|---|
| Strut | Combines spring and shock absorber into one unit |
| Lower control arm | Connects the wheel hub to the vehicle frame |
| Ball joint | Allows for steering movement |
| Anti-roll bar | Reduces body roll during cornering |
The MacPherson strut’s popularity stems from its compact design, which allows for more engine bay space and lower manufacturing costs. It’s commonly found in the front suspension of many modern passenger cars.
C. Semi-independent suspension
Semi-independent suspension represents a middle ground between dependent and independent suspension systems. It offers some of the benefits of independent suspension while maintaining the simplicity and cost-effectiveness of dependent systems.
Characteristics of semi-independent suspension:
- Partial wheel independence: Wheels can move somewhat independently but still influence each other.
- Improved ride quality: Better than dependent suspension but not as refined as fully independent systems.
- Cost-effective: Less expensive than fully independent systems.
- Compact design: Ideal for smaller vehicles with space constraints.
The most common type of semi-independent suspension is the twist-beam rear suspension, also known as a torsion beam or compound crank suspension.
Twist-beam rear suspension:
- Design: A U-shaped beam connects the trailing arms of both wheels.
- Function: The beam flexes slightly during cornering, providing some independence between wheels.
- Advantages: Simple, lightweight, cost-effective, and space-efficient.
- Disadvantages: Limited wheel travel and less refined handling compared to fully independent systems.

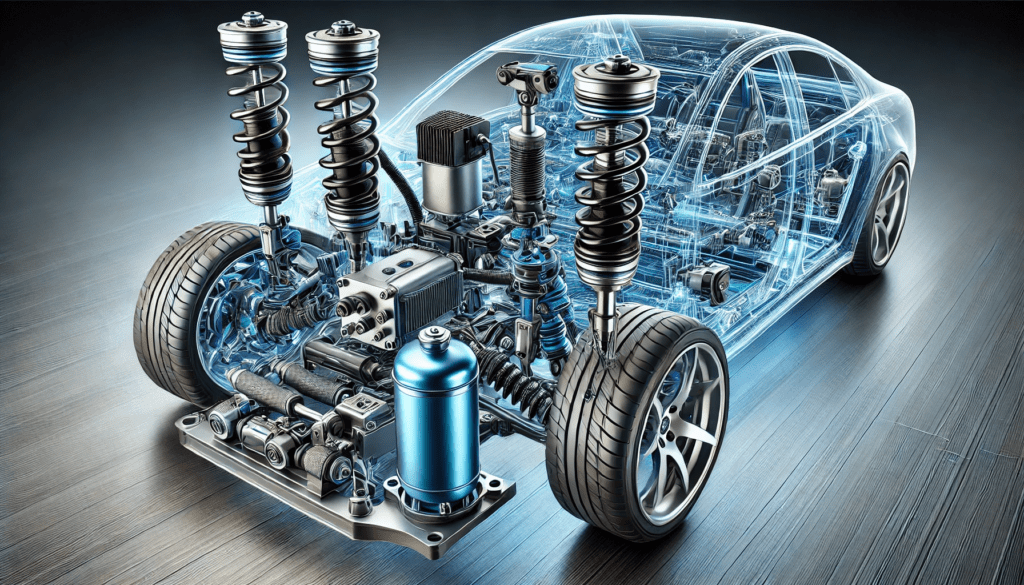

D. Air suspension
Air suspension is an advanced system that replaces traditional steel springs with air springs or bellows. This type of suspension offers adjustable ride height and improved ride quality.
Key features of air suspension:
- Adjustable ride height: Allows for better ground clearance or improved aerodynamics.
- Customizable ride comfort: Can be adjusted for different driving conditions or preferences.
- Self-leveling capability: Maintains consistent vehicle height regardless of load.
- Improved towing capacity: Can provide better stability when hauling heavy loads.
Components of an air suspension system:
- Air springs or bellows
- Compressor
- Air reservoir
- Control module
- Height sensors
| Advantage | Description |
|---|---|
| Comfort | Provides a smooth, cushioned ride |
| Versatility | Adapts to various driving conditions and loads |
| Handling | Improves stability and reduces body roll |
| Longevity | Air springs typically last longer than traditional coil springs |
While air suspension offers numerous benefits, it’s important to note that it can be more expensive to install and maintain compared to conventional suspension systems.
E. Adaptive suspension
Adaptive suspension, also known as active suspension, represents the cutting edge of suspension technology. This system uses electronic controls and sensors to continuously adjust the suspension characteristics in real-time, providing optimal performance and comfort under various driving conditions.
Features of adaptive suspension:
- Real-time adjustments: Suspension settings change based on road conditions, driving style, and vehicle dynamics.
- Multiple driving modes: Allows drivers to select between comfort, sport, or other preset modes.
- Improved handling: Can stiffen suspension during cornering for better stability.
- Enhanced comfort: Softens suspension on rough roads for a smoother ride.
- Integration with other vehicle systems: Often works in conjunction with stability control and other safety features.
Components of an adaptive suspension system:
- Electronically controlled dampers
- Sensors (accelerometers, height sensors, steering angle sensors)
- Control unit
- Actuators
- Air springs (in some systems)
Adaptive suspension systems can vary in complexity and capabilities. Some popular types include:
- Magnetorheological dampers: Use magnetic fields to change the viscosity of the damper fluid.
- Hydraulic active suspension: Uses hydraulic actuators to control wheel movement.
- Air-based adaptive suspension: Combines air suspension with electronic controls for adaptive capabilities.
| Aspect | Traditional Suspension | Adaptive Suspension |
|---|---|---|
| Adjustability | Fixed or manually adjustable | Automatically adjusts in real-time |
| Comfort | Consistent across all conditions | Optimized for each driving situation |
| Handling | Fixed characteristics | Adapts to driving style and conditions |
| Complexity | Simpler design | More complex with electronic components |
| Cost | Generally less expensive | Higher initial and maintenance costs |
While adaptive suspension systems offer unparalleled performance and comfort, they are typically found in high-end luxury vehicles and sports cars due to their complexity and cost. However, as technology advances and becomes more affordable, we may see these systems becoming more common in mainstream vehicles.
Now that we’ve explored the various types of suspension systems, from the simple dependent suspensions to the advanced adaptive systems, we can better appreciate the engineering that goes into creating a smooth and controlled ride. In the next section, we’ll delve into the common suspension configurations used in different types of vehicles, building upon the knowledge we’ve gained about these suspension types.

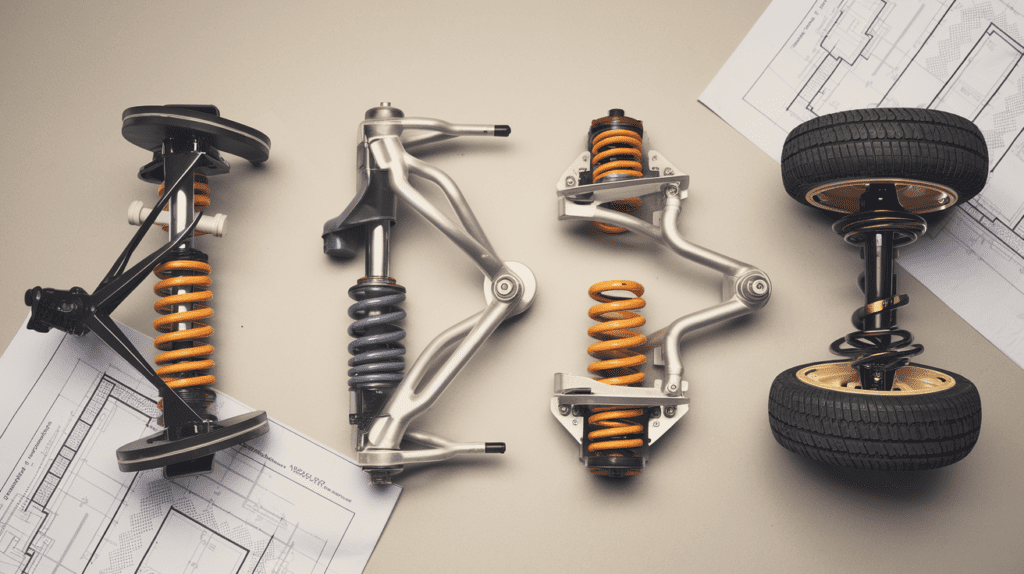

Common Suspension Configurations
MacPherson strut
The MacPherson strut is one of the most widely used suspension configurations in modern vehicles, particularly in the front suspension of many cars. Named after its inventor, Earle S. MacPherson, this design combines the shock absorber and coil spring into a single unit, offering a compact and cost-effective solution for automotive suspension.
Key features of the MacPherson strut include:
- Simplicity: The design uses fewer components compared to other suspension types.
- Space-efficiency: It allows for more room in the engine bay and passenger compartment.
- Cost-effectiveness: Fewer parts mean lower manufacturing and maintenance costs.
- Lightweight: The compact design contributes to overall vehicle weight reduction.
However, the MacPherson strut also has some limitations:
- Limited camber adjustment
- Potential for increased body roll in corners
- Vulnerability to wear and tear, especially in the upper strut mount
Despite these drawbacks, the MacPherson strut remains a popular choice for many manufacturers due to its overall benefits and suitability for a wide range of vehicle types.
Double wishbone
The double wishbone suspension, also known as double A-arm suspension, is a more complex but highly effective configuration used in both front and rear suspensions. This design utilizes two wishbone-shaped arms (hence the name) to connect the wheel hub to the vehicle’s frame or body.
Key advantages of the double wishbone suspension include:
- Superior handling: Allows for precise control of wheel movement and camber angles.
- Improved ride quality: Better absorbs road imperfections and maintains tire contact with the road.
- Reduced body roll: Enhances stability during cornering and high-speed maneuvers.
- Customizability: Offers more room for fine-tuning suspension geometry.
Here’s a comparison between MacPherson strut and double wishbone suspensions:
| Aspect | MacPherson Strut | Double Wishbone |
|---|---|---|
| Complexity | Simple | Complex |
| Cost | Lower | Higher |
| Handling | Good | Excellent |
| Space efficiency | High | Moderate |
| Customizability | Limited | Extensive |
| Typical applications | Economy cars, compact SUVs | Sports cars, luxury vehicles |
While the double wishbone configuration offers superior performance, its complexity and higher cost make it less common in mass-produced vehicles. However, it remains a preferred choice for high-performance and luxury automobiles where handling characteristics are prioritized.
Multi-link suspension
Multi-link suspension represents one of the most advanced and versatile suspension configurations available. As the name suggests, this system uses multiple links or arms to connect the wheel hub to the vehicle’s body or subframe. The exact number of links can vary, but typically ranges from three to five per wheel.
Key benefits of multi-link suspension include:
- Exceptional ride comfort: Ability to absorb a wide range of road imperfections.
- Superior handling: Precise control over wheel movement in all directions.
- Reduced noise and vibration: Better isolation of road noise and wheel vibrations.
- Flexibility in design: Allows engineers to fine-tune suspension characteristics.
- Improved stability: Better maintains wheel alignment during various driving conditions.
Multi-link suspensions can be designed to prioritize different aspects of performance, making them suitable for a wide range of vehicle types. Here’s a list of common applications:
- Luxury sedans and SUVs
- High-performance sports cars
- Electric vehicles
- Some mid-range vehicles where comfort and handling are prioritized
While multi-link suspensions offer numerous advantages, they also come with some drawbacks:
- Higher complexity and cost
- Increased weight compared to simpler designs
- More challenging to maintain and repair
- Requires more space, which can impact interior room in smaller vehicles
Despite these challenges, the multi-link suspension’s ability to provide an optimal balance between ride comfort and handling performance makes it increasingly popular in modern vehicle design.
Leaf spring suspension
Leaf spring suspension is one of the oldest suspension designs still in use today. This system uses a series of curved metal strips (leaves) stacked together to form a spring that supports the vehicle’s weight and absorbs road shocks. While less common in passenger cars, leaf spring suspensions remain prevalent in trucks, vans, and some SUVs.
Key characteristics of leaf spring suspension:
- Durability: Robust design capable of handling heavy loads.
- Simplicity: Fewer components compared to more modern designs.
- Cost-effectiveness: Lower manufacturing and maintenance costs.
- Load-bearing capacity: Excellent for vehicles that carry heavy loads or tow trailers.
However, leaf spring suspensions also have some limitations:
- Less refined ride quality compared to more modern designs
- Limited ability to control wheel movement, potentially affecting handling
- Tendency to create more noise and vibration
- Can be heavy, impacting vehicle weight and fuel efficiency
Here’s a comparison of leaf spring suspension with other common configurations:
| Aspect | Leaf Spring | MacPherson Strut | Double Wishbone | Multi-link |
|---|---|---|---|---|
| Ride comfort | Fair | Good | Very Good | Excellent |
| Handling | Fair | Good | Excellent | Excellent |
| Load capacity | Excellent | Fair | Good | Good |
| Complexity | Low | Low | Moderate | High |
| Cost | Low | Low | Moderate | High |
| Typical applications | Trucks, vans | Economy cars | Sports cars | Luxury vehicles |
While leaf spring suspensions may seem outdated compared to more modern designs, they continue to serve an important role in vehicle engineering, particularly for vehicles designed for heavy-duty use or those prioritizing simplicity and cost-effectiveness over ride refinement.
In conclusion, each suspension configuration offers unique advantages and trade-offs. The choice of suspension system depends on various factors, including the vehicle’s intended use, performance requirements, cost considerations, and target market. As automotive technology continues to evolve, we may see further innovations in suspension design, potentially combining the strengths of different configurations to create even more effective solutions for future vehicles.

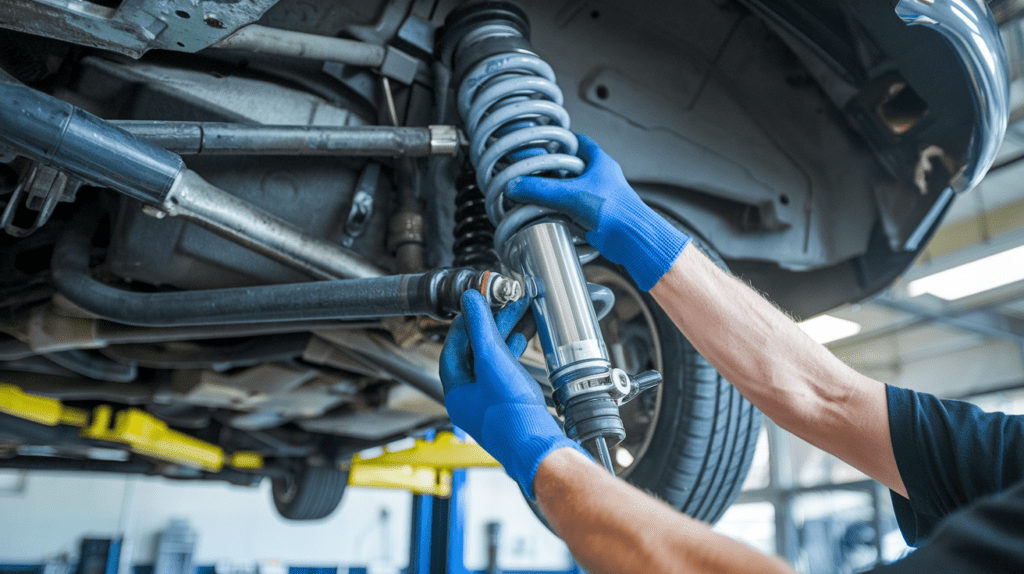

Suspension System Maintenance
Signs of worn suspension
A well-functioning suspension system is crucial for a smooth and safe ride. However, like any other part of your vehicle, the suspension system can wear out over time. Recognizing the signs of worn suspension is essential for timely maintenance and ensuring your vehicle’s optimal performance. Here are some key indicators that your suspension system may need attention:
- Rough or bouncy ride: If you notice your vehicle bouncing excessively after hitting a bump or pothole, it could be a sign that your shock absorbers or struts are worn out.
- Nose diving when braking: When your car’s front end dips significantly during braking, it may indicate weak shock absorbers.
- Uneven tire wear: Worn suspension components can cause uneven distribution of weight on your tires, leading to irregular tire wear patterns.
- Steering difficulties: If you experience difficulty in steering or notice that the steering wheel is not centered when driving straight, it could be due to suspension issues.
- Unusual noises: Creaking, knocking, or clunking sounds, especially when going over bumps or during turns, may indicate worn suspension components.
- Vehicle leaning or swaying: If your car leans excessively during turns or sways from side to side, it could be a sign of worn shocks or struts.
- Oil leaks on shocks/struts: Visible oil on the exterior of shock absorbers or struts is a clear indication that they need replacement.
- Uneven height: If one corner of your vehicle appears lower than the others, it may indicate a problem with the suspension system.
Being aware of these signs can help you identify suspension issues early, preventing more severe problems and ensuring a safer driving experience.
Regular inspection checklist
To maintain your suspension system’s health and catch potential issues before they become major problems, it’s essential to perform regular inspections. Here’s a comprehensive checklist to help you keep your suspension system in top condition:
- Visual inspection:
- Check for visible damage or leaks on shock absorbers and struts
- Look for signs of rust or corrosion on suspension components
- Inspect rubber bushings and mounts for cracks or deterioration
- Examine the condition of ball joints and tie rod ends
- Bounce test:
- Push down on each corner of the vehicle and release
- Observe if the car bounces more than once or twice
- If it continues to bounce, shock absorbers may need replacement
- Tire inspection:
- Check for uneven tire wear patterns
- Look for cupping or scalloping on the tire tread
- Ensure proper tire inflation
- Steering and alignment check:
- Test for excessive play in the steering wheel
- Check if the steering wheel is centered when driving straight
- Look for signs of uneven tire wear indicating alignment issues
- Suspension component examination:
- Inspect control arms for bends or cracks
- Check coil springs for breaks or deformation
- Examine leaf springs for cracks or separation
- Ride height measurement:
- Measure the distance from the ground to a fixed point on each corner of the vehicle
- Compare measurements to ensure they are consistent
- Lubrication check:
- Ensure all grease fittings are properly lubricated
- Check for any dry or rusty joints that may need lubrication
- Road test:
- Drive the vehicle and pay attention to any unusual noises, vibrations, or handling issues
- Test braking performance and observe if the vehicle pulls to one side
To help you keep track of your suspension system’s health, use the following Markdown table as a quick reference guide:
| Component | What to Check | Frequency |
|---|---|---|
| Shock absorbers/Struts | Leaks, damage, performance | Every 50,000 miles or annually |
| Ball joints | Wear, play | Every 50,000 miles or annually |
| Tie rod ends | Wear, looseness | Every 50,000 miles or annually |
| Bushings | Cracks, deterioration | Every 30,000 miles or bi-annually |
| Springs | Breaks, sagging | Every 50,000 miles or annually |
| Tire wear | Uneven patterns, cupping | Every 5,000 miles or with rotation |
| Alignment | Tire wear, steering | Every 15,000-30,000 miles or as needed |
Regular inspections using this checklist can help you maintain your suspension system’s performance and catch potential issues before they become costly repairs.
When to replace suspension components
Knowing when to replace suspension components is crucial for maintaining your vehicle’s safety, comfort, and performance. While regular inspections can help identify issues, certain factors and guidelines can help you determine when it’s time for replacement:
- Mileage-based replacement:
- Shock absorbers and struts: Generally, these should be replaced every 50,000 to 100,000 miles, depending on driving conditions and vehicle type.
- Ball joints: Typically last 70,000 to 150,000 miles, but may need earlier replacement in heavy-duty applications.
- Tie rod ends: Usually require replacement between 70,000 and 100,000 miles.
- Control arm bushings: Often last 90,000 to 100,000 miles before needing replacement.
- Age-based replacement:
- Even if mileage is low, suspension components can deteriorate due to age and environmental factors.
- Consider replacing major suspension components after 8-10 years, regardless of mileage.
- Visible damage or wear:
- Replace components immediately if you notice:
- Cracks, bends, or breaks in any suspension parts
- Significant rust or corrosion
- Leaking shock absorbers or struts
- Torn or severely deteriorated bushings
- Replace components immediately if you notice:
- Performance indicators:
- Replace suspension components when you experience:
- Excessive bouncing or swaying during driving
- Persistent steering issues or alignment problems
- Uneven tire wear that doesn’t improve after alignment
- Replace suspension components when you experience:
- After significant impacts:
- Consider replacing suspension components after:
- Major accidents
- Hitting large potholes or curbs at high speeds
- Off-road adventures that may have stressed the suspension
- Consider replacing suspension components after:
- Preventive maintenance:
- Some experts recommend replacing suspension components in pairs (e.g., both front struts) to ensure balanced performance.
- Consider replacing related components together (e.g., strut, spring, and mount) for optimal results and labor efficiency.
- Vehicle-specific recommendations:
- Always consult your vehicle’s owner’s manual for manufacturer-specific guidelines on suspension component replacement.
- Some high-performance or luxury vehicles may have different replacement intervals.
Here’s a list of factors that can accelerate suspension wear and may necessitate earlier replacement:
- Frequent driving on rough or unpaved roads
- Heavy loads or towing
- Extreme weather conditions (excessive heat, cold, or moisture)
- Aggressive driving habits (frequent hard braking, rapid acceleration, sharp turns)
- Salt exposure in coastal areas or regions that use road salt in winter
When replacing suspension components, it’s essential to consider the following:
- Quality of replacement parts: Opt for OEM (Original Equipment Manufacturer) or high-quality aftermarket parts to ensure proper fit and performance.
- Complete system evaluation: When replacing one component, have a professional inspect related parts to identify any potential cascading issues.
- Alignment after replacement: Always have your vehicle’s alignment checked and adjusted after replacing major suspension components.
- Break-in period: Some new suspension components may require a break-in period. Follow manufacturer recommendations for optimal performance.
- Warranty considerations: Be aware of warranty terms for new components and follow recommended maintenance to keep the warranty valid.
By following these guidelines and paying attention to your vehicle’s performance, you can ensure that your suspension system remains in top condition, providing a safe and comfortable ride. Remember that while DIY inspections are valuable, professional assessments can provide more accurate diagnoses and ensure proper replacement when necessary.
As we move forward, it’s important to consider how different types of vehicles may have unique suspension systems and maintenance requirements. Understanding these variations can help you better care for your specific vehicle and make informed decisions about upgrades or modifications.
Upgrading Your Suspension System
Performance benefits
Upgrading your suspension system can significantly enhance your vehicle’s performance, handling, and overall driving experience. Let’s explore some of the key benefits you can expect from a well-executed suspension upgrade:
- Improved handling and stability: One of the primary advantages of upgrading your suspension system is the noticeable improvement in your vehicle’s handling capabilities. A high-quality suspension upgrade can:
- Reduce body roll during cornering
- Enhance steering responsiveness
- Increase overall stability at high speeds
- Provide better traction, especially during aggressive maneuvers
- Enhanced ride comfort: Contrary to popular belief, upgrading your suspension doesn’t always mean sacrificing comfort. Many aftermarket suspension components are designed to offer a balance between performance and ride quality, resulting in:
- Smoother absorption of road imperfections
- Reduced vibrations and harshness
- Better control over larger bumps and potholes
- Increased safety: A well-tuned suspension system contributes significantly to your vehicle’s safety. Upgrades can lead to:
- Shorter stopping distances
- Improved emergency maneuver capabilities
- Better tire contact with the road surface
- Customized ride height: Many suspension upgrades allow you to adjust your vehicle’s ride height, which can offer both aesthetic and performance benefits:
- Lowered center of gravity for improved handling
- Reduced aerodynamic drag at high speeds
- Enhanced visual appeal
- Load-carrying capacity: For those who frequently carry heavy loads or tow trailers, certain suspension upgrades can improve your vehicle’s load-bearing capabilities:
- Better weight distribution
- Reduced sagging under heavy loads
- Improved stability when towing
Here’s a comparison table of performance benefits for different types of suspension upgrades:
| Upgrade Type | Handling | Comfort | Adjustability | Load Capacity |
|---|---|---|---|---|
| Lowering Springs | High | Moderate | Low | Low |
| Coilovers | Very High | Moderate to High | Very High | Moderate |
| Air Suspension | High | Very High | Very High | High |
| Sway Bars | High | Low | Low | Low |
| Performance Shocks | High | High | Moderate | Moderate |
Popular aftermarket modifications
When it comes to upgrading your suspension system, there are numerous aftermarket modifications available. Each offers unique benefits and caters to different driving styles and preferences. Here are some of the most popular aftermarket suspension modifications:
- Coilover kits: Coilovers are one of the most versatile and popular suspension upgrades. They combine a coil spring with a shock absorber in a single unit, offering:
- Adjustable ride height
- Customizable spring rates
- Improved handling and cornering ability
- Reduced body roll
- Lowering springs: These are a more budget-friendly option for those looking to lower their vehicle and improve handling:
- Reduced center of gravity
- Improved cornering stability
- Enhanced aesthetics
- Performance shock absorbers: Upgrading your stock shocks to high-performance variants can significantly improve your vehicle’s ride quality and handling:
- Better damping characteristics
- Improved heat dissipation for consistent performance
- Reduced body movement during acceleration, braking, and cornering
- Sway bars (anti-roll bars): These modifications help reduce body roll during cornering:
- Improved weight transfer characteristics
- Enhanced steering response
- Better overall handling, especially during quick direction changes
- Air suspension systems: While more complex and expensive, air suspension offers unparalleled adjustability:
- On-the-fly ride height adjustments
- Excellent load-leveling capabilities
- Smooth ride quality
- Ability to achieve an extremely low stance for shows or improved aerodynamics
- Bushing upgrades: Replacing stock rubber bushings with polyurethane or solid metal variants can:
- Reduce suspension flex
- Improve steering precision
- Enhance overall handling feel
- Strut tower braces: These braces help stiffen the chassis, reducing flex during cornering:
- Improved steering response
- Better overall handling, especially in vehicles with a unibody construction
- Adjustable control arms: These allow for fine-tuning of suspension geometry:
- Ability to correct alignment issues, especially in lowered vehicles
- Improved camber and caster adjustability for optimal tire contact
Considerations before upgrading
While upgrading your suspension system can bring numerous benefits, it’s crucial to carefully consider several factors before making any modifications:
- Vehicle type and intended use: Different vehicles and driving styles require different suspension setups. Consider:
- Daily driver vs. track car
- On-road vs. off-road use
- Comfort requirements vs. performance needs
- Budget: Suspension upgrades can range from relatively inexpensive to extremely costly. Determine your budget and prioritize upgrades accordingly:
- Consider long-term value and potential future upgrades
- Factor in installation costs if you’re not doing the work yourself
- Legal restrictions: Some suspension modifications may not be street-legal in certain jurisdictions. Research local laws regarding:
- Minimum and maximum ride heights
- Visibility requirements
- Noise regulations (for certain air suspension setups)
- Compatibility: Ensure that the chosen upgrades are compatible with your specific vehicle make and model:
- Check for any necessary additional modifications
- Consider how the upgrade might affect other vehicle systems (e.g., ABS, traction control)
- Warranty implications: Some suspension modifications may void parts of your vehicle’s warranty. Be aware of:
- Manufacturer warranty terms
- Potential impacts on extended warranties
- Driving dynamics: Understand how the upgrades will affect your vehicle’s handling characteristics:
- Stiffer suspensions may improve handling but reduce comfort
- Lowering your vehicle can affect ground clearance and approach angles
- Maintenance requirements: Some aftermarket suspension components may require more frequent maintenance or specialized care:
- Consider long-term maintenance costs
- Evaluate your ability to perform necessary maintenance
- Professional installation: While some upgrades can be DIY projects, others may require professional installation:
- Factor in installation costs
- Consider the complexity of the upgrade and your own mechanical skills
- Resale value: Think about how the modifications might affect your vehicle’s resale value:
- Some buyers may prefer stock suspension
- High-quality, reversible upgrades may be more attractive to potential buyers
- Future upgrades: Consider how the chosen modifications fit into your long-term plans for the vehicle:
- Will the upgrades complement future modifications?
- Are the components easily adjustable or replaceable?
By carefully considering these factors, you can make an informed decision about upgrading your suspension system, ensuring that the modifications align with your goals, budget, and vehicle’s needs. Remember, a well-planned suspension upgrade can significantly enhance your driving experience, but it’s essential to approach the process thoughtfully and systematically.
Now that we’ve explored the benefits, popular modifications, and important considerations for upgrading your suspension system, let’s move on to how suspension systems vary across different types of vehicles.
Suspension Systems in Different Vehicles
Passenger cars
Passenger cars are designed for everyday use, prioritizing comfort, stability, and handling. The suspension systems in these vehicles are crucial for providing a smooth ride while maintaining control. Most modern passenger cars utilize independent suspension systems, which allow each wheel to move independently of the others.
One of the most common suspension types found in passenger cars is the MacPherson strut. This system combines a shock absorber and a coil spring into a single unit, offering a compact design that’s ideal for front-wheel-drive vehicles. The MacPherson strut is popular due to its simplicity, cost-effectiveness, and ability to provide a comfortable ride.
Another frequently used suspension configuration in passenger cars is the double wishbone suspension. This system offers superior handling and control, making it a favorite among luxury and sports car manufacturers. The double wishbone design allows for more precise wheel alignment and better cornering performance.
Here’s a comparison of MacPherson strut and double wishbone suspensions:
| Feature | MacPherson Strut | Double Wishbone |
|---|---|---|
| Cost | Lower | Higher |
| Complexity | Simpler | More complex |
| Space efficiency | More compact | Requires more space |
| Handling | Good | Excellent |
| Ride comfort | Very good | Good to excellent |
| Adjustability | Limited | Highly adjustable |
Some high-end passenger cars also feature air suspension systems, which use compressed air to adjust ride height and comfort levels. These systems offer excellent ride quality and the ability to adapt to different driving conditions.
SUVs and trucks
SUVs and trucks require more robust suspension systems due to their higher weight, increased cargo capacity, and potential off-road use. These vehicles often employ a combination of different suspension types to balance comfort, load-bearing capacity, and versatility.
Many SUVs use a combination of independent front suspension (often MacPherson struts or double wishbones) and a solid rear axle with leaf springs or coil springs. This configuration provides a good balance between comfort and load-carrying capacity. However, more modern SUVs are increasingly adopting fully independent suspension systems for improved ride quality and handling.
Trucks, especially heavy-duty models, commonly use leaf spring suspensions for their rear axles. Leaf springs are durable, cost-effective, and capable of handling heavy loads. They consist of several layers of metal strips (leaves) that flex under weight and absorb road irregularities. While leaf springs may not offer the same level of comfort as other suspension types, they excel in load-bearing applications.
Some key features of SUV and truck suspensions include:
- Higher ground clearance
- Increased suspension travel
- Heavier-duty components
- Optional air suspension for load leveling
- Towing packages with specialized suspension tuning
Racing vehicles
Racing vehicles require highly specialized suspension systems designed to maximize performance, cornering ability, and high-speed stability. These suspensions are significantly different from those found in regular passenger cars, focusing on precision, adjustability, and weight reduction.
Most racing cars use double wishbone suspensions for both front and rear axles. This configuration allows for precise control over camber, caster, and toe angles, which are crucial for optimizing tire contact with the track surface. The double wishbone design also provides excellent feedback to the driver and allows for quick adjustments between races or even during pit stops.
Another popular racing suspension configuration is the pushrod suspension. This system uses a rocker arm to transfer the wheel’s vertical movement to the spring and damper units, which are often mounted inside the vehicle’s body. This design offers several advantages:
- Improved aerodynamics by moving suspension components out of the airflow
- Lower center of gravity
- Reduced unsprung weight
- Better packaging and weight distribution
Racing suspensions also incorporate advanced materials and technologies, such as:
- Carbon fiber components for weight reduction
- Titanium springs for durability and weight savings
- Gas-pressurized shock absorbers for consistent performance
- Active suspension systems (in some racing categories) for real-time adjustments
Off-road vehicles
Off-road vehicles face unique challenges, requiring suspension systems that can handle extreme terrain, large obstacles, and varying surface conditions. These suspensions need to provide maximum wheel travel, durability, and articulation while maintaining vehicle control and occupant comfort.
Some common suspension types used in off-road vehicles include:
- Solid axle suspension: Offers excellent articulation and durability, ideal for rock crawling and extreme off-roading.
- Independent suspension: Provides better ride quality and handling on mixed terrain, popular in modern SUVs and light off-road vehicles.
- Long-travel suspension: Designed to absorb large impacts and provide increased ground clearance, often used in desert racing vehicles.
Off-road suspensions often incorporate specialized components such as:
- Heavy-duty shock absorbers with remote reservoirs for improved cooling and performance
- Coilover shocks that combine springs and shock absorbers into a single unit
- Adjustable air suspension systems for variable ride height and adaptability
- Sway bar disconnect systems for increased articulation when needed
Here’s a comparison of different off-road suspension configurations:
| Suspension Type | Articulation | Ride Comfort | Durability | Typical Applications |
|---|---|---|---|---|
| Solid axle | Excellent | Fair | Excellent | Rock crawlers, heavy-duty off-road trucks |
| Independent | Good | Very good | Good | Modern SUVs, light off-road vehicles |
| Long-travel | Very good | Good | Very good | Desert racers, high-performance off-road vehicles |
Off-road enthusiasts often modify their vehicles’ suspensions to improve performance. Common upgrades include:
- Lift kits to increase ground clearance
- Upgraded shock absorbers and springs
- Addition of secondary shock absorbers (dual shocks)
- Custom fabricated control arms for increased wheel travel
Now that we’ve explored suspension systems in different vehicle types, it’s clear that each application requires a unique approach to balance performance, comfort, and functionality. Whether it’s the smooth ride of a passenger car, the rugged capability of an off-road vehicle, or the precision of a racing machine, suspension systems play a crucial role in defining a vehicle’s character and capabilities.
A well-functioning suspension system is crucial for vehicle performance, safety, and comfort. From coil springs to air suspensions, understanding the various types and configurations can help you make informed decisions about maintenance and upgrades. Regular checks and timely repairs are essential to keep your suspension in top condition, ensuring a smooth ride and optimal handling.
Whether you’re driving a family sedan, off-road vehicle, or performance car, the right suspension setup can significantly enhance your driving experience. By staying informed about your vehicle’s suspension system and considering appropriate upgrades when necessary, you can enjoy improved stability, handling, and overall ride quality for years to come.
Visit website, click on this link: Autobiography Zone
Thank you visit again
